Haynes Service Manual. Includes step-by-step procedures accompanied by hundreds of photos and drawings, comprehensive routine maintenance and fault diagnosis sections. A very thorough manual based on a complete stripdown and rebuild.

Honda CB750 (1969-78) SOHC Four
Part #: 61-0131

Clymer Service Manual. Includes 11 Chapters of Maintenance, Troubleshooting and Repair information and tips. Features full color wiring diagrams for your reference.

Honda CB750 (1969-78) SOHC Four
Part #: 61-1160

3.33 oz. (75 ml) tube of Autosol Metal Polish.
Cleans, polishes, protects and removes corrosion.
For all metal parts-chrome, brass, copper, nickel,
stainless steel & aluminum.
Made in Germany since 1929.

"A product that is superior to anything else available"
Part #: 05-9004

Gasket Cement - 3-Bond #1194 - 100 gram tube - Gray semi-drying type.
Use on gaskets except head gasket and on all surfaces without gaskets.
Part #: 05-0001

Cam Chain Tool Kit in case - a "must have" tool to Break and Rivet cam chains.

Note: Do Not use for rear drive chains.
Part #: 35-0112

Replacement Breaker Pin for Kit #35-0112 Breaker Tool.

Replacement Breaker Pin for Cam Chain Breaker Tool.
Part #: 35-0117

Cylinder Compression Tester set with quick coupling & release valve. Includes adapters to fit 10mm, 12mm, 14mm, & 18mm Spark plug holes.
Part #: 35-9030

Valve Spring Compressor - Large Honda heavy duty type.
This style valve spring Compressor works best on the CB.
Part #: 35-0123

Valve Shim Tool for Honda CB750/900
Part #: 35-1041

Valve Lapping Stick - 5/8" & 13/16" Diameter Ends, Suction Cup ends. Holds valve face so valve seat can be seated correctly with lapping paste.
Part #: 35-0058

Valve Lapping Paste - Permatex

Aids valve grinding and seating operations to remove burrs, surface defects, carbon and corrosion. Mixes with water to form an easy to use paste.
Part #: 35-0124

Valve Stem Puller
Part #: 35-9103

Thread Pitch Gauge for measuring Metric thread pitch (threads per millimeter). A very useful tool to identify the many various fastener threads used on Japanese bikes. Gauge has the following sizes - 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.25, 1.75, 2.7, 2.8.
Part #: 35-8031

"Tuck Away" 12mm Spark Plug Wrench for (1969-78) CB750
Fits 12mm Spark Plugs, 160mm overall, thinwall design allows fit into the deep CB plug holes. Handle Tucks away into socket.
Part #: 35-0078

5pc Hook and Pick set with magnet in handle end.
Part #: 35-9038

5pc Screw Extractor Set - used to remove broken off studs, bolts, & screws. Set includes sizes - 1/8", 3/16", 15/64", 5/16", & 3/8"
Part #: 35-9048

8 pc. Driver Set for Allen Socket Screw

Hard to find deep 140mm. Long bits ideal for reaching up
inside lower fork legs and other recessed spots. Kit includes
1/2" drive socket sizes 5, 6, 7, 8, 10, 12, 14 & 17mm.
Part #: 35-9049

8 pc. Metric Pin Punch Set
Set includes small sizes usually not available:
1.5mm, 2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm, 5.5 mm,
6.0 mm, & 8.0 mm in storage case
Part #: 35-9050

30mm Diameter inspection mirror on telescoping wand, 7-20" range.
Part #: 35-9035

Flexible Rod with magnetic tip. 23" Long, picks up to 3.5 Lbs.
Part #: 35-9036

29" Long Flex Rod with lighted magnetic Tip.
Part #: 35-9034

Compact LED flashlight with 5" long flexible lighted tip in plastic carrying case. Ideal addition to your bikes tool kit as a map light or for emergency roadside repair. Low power draw LED bulb provides a bright beam and long battery life from one AAA battery (Not Included).
Part #: 35-1780

Inductive Xenon Timing Light. Operates from 12 Volt Battery Power. The only accurate way to set your CB's Timing and check the operation of the advance.
Part #: 35-9000

4 Gauge Carb Sync Set with build in adjustable Pulse Dampers and mounted on bracket (includes hoses and threaded adaptor set).

Precision Diaphragm type gauge set originally designed for Professional Motorcycle shop use in Japan.
Part #: 35-1386

Precision Angle driver set (in carrying case) with assorted tips.
A must for setting hidden fuel mixture screws accurately and quickly.
A high quality tool.
Part #: 35-0096

Cylinder compression Tester with quick coupling, universal adapter and flex hose with 14mm threaded end.
Part #: 35-9031

100 Amp Battery Cables (8' Long) with alligator clips - For Motorcycle use.
Part #: 35-9004

Deluxe 12 Volt Battery Charger for AGM (Absorbed glass mat), Maintenance free, VRLA, Gel and conventional flooded lead acid batteries.

UL & CSA Approved. Output is 1.25 Amps, 12 volt DC (maximum 14.5 Volts).
4 Stage Microprocessor controlled charging with automatic shutoff at full
charge. 120v AC Input.

1. Qualification - Ensures battery is safe to charge, and has minimum 3 Volts.
2. Bulk Charge - Raises battery to 80 percent of full voltage.
3. Absorption - Holds battery voltage at 80 percent and forces current to top battery
4. Float Mode - Maintains the fully charged battery at a proper working voltage.
Charger Features - 6 LED indicators to show charging status, reverse polarity protection, overheat protection, overcharge protection and spark proofing. Full instructions, quick disconnect alligator clip leads and fused eye terminal leads included. (Not for outdoor use).
Part #: 42-3512

Electrical Continuity Tester (use with power off) - Detects open circuit in fuses, diodes, switches, sockets and wires (requires one AA battery, Not included).
Long 48" leads.
Part #: 35-9008

Electric Circuit Tester - Checks all motorcycle primary electrical and computer circuits for power. Plastic handle lights up if circuit is good. Icepick type probe and 48" cable with insulated alligator clips.
Part #: 35-9009

Digital Multi Tester, measures DC volts 2V, 20V, 200V, 600V. AC volts to 600V, Ohms 200, 2K, 20K, 200K, 2M, 200M. Amps 2M, 20M, 200M.
Part #: 35-9002

LED Charging system indicator Gauge. Shows Voltage of your alternator rising and falling with RPM and gives a clear indication of your charging systems normal operation and early warning of problems. Gauge is Bright High Quality Chrome plated and clamps onto 7/8" Bars and can be easily wired into any point in the system (before a switched load is best). Can be mounted as shown or to handlebar by clamp (included).

Fits: All Honda CB750's (1969-1986) with 7/8" bars
Part #: 24-2660

Terminal crimper tool, fastens metric terminals to wires. Professional Crimps like factory originals. Also can be used to cut and strip wire.
Part #: 35-0008

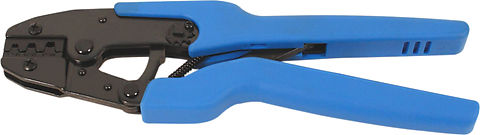

Metric Terminal Crimper Tool, fastens metric terminals to wires. Professionally Crimps like factory originals.
Part #: 35-0011

Safety Wire Pliers with return spring mechanism for easy wire twisting.
Part #: 35-0122

Alternator Rotor Puller - 18mm x M1.5 Right Hand Thread Puller for pulling internal thread rotors and flywheels.

Pulls Alternator Rotors on Honda CB750K (1978)
Part #: 35-0035

Alternator Rotor Puller - 20mm x M1.5 Right Hand Thread Puller for pulling internal thread rotors.

Pulls Alternator Rotors on All Honda CB750 (1969-78) SOHC Models.
Part #: 35-0030

Piston Pin Puller with adaptors (13,15,16,19mm. OD).
Part #: 35-0090

40 pc. Metric Tap & Die Set in storage case.
Set includes Pitch Gauge, Die Holder, 2 Tap Wrenches & screw driver +

Metric Taps - M3 x 0.5, M3 x 0.6, M4 x 0.75, M4 x 0.7, M5 x 0.8, M5 x 0.9,
M6 x 1.0, M6 x 0.75, M7 x 0.75, M7 x 1.0, M8 x 1.0, M8x 1.25, M10 x 1.25,
M10 x1.5, M12x 1.25, M12 x 1.5, 1/8NPT x 27

Metric Dies - 17 Dies to match taps listed above.
Part #: 35-8030

Metric Go Thru Socket Set - Rachet and Extension Hold Socket from the outside eliminating the need for deep sockets. Reaches in Deep.

Set includes Thin Go Thru Rachet and Extension + 6 pint Go thru Sockets - 19mm.,17mm.,16mm., 15mm., 14mm., 13mm., 12mm., 11mm., 10mm.,+

1/4" Drive adaptor with matching Sockets in Sizes - 14mm., 13mm.,12mm., 11mm.,10mm., 9mm., 8mm., 7mm., 6mm., 5.5mm., 5mm., 4.5mm., & 4mm.

Comes In a Plastic Latched Case.
Part #: 35-9056

5pc Folding Socket Set with Sliding T Handle Driver, comes with 8mm, 10mm, 12mm and 13mm sockets.
Part #: 35-0077

7pc T Handle Wrench Set/Socket Set.
Set includes 8mm, 10mm, 12mm, 14mm and 17mm 6 point socket wrenches and one phillips #2 and #3 screwdriver tips.
Part #: 35-9101

Metric Nut Driver Set - Quality Forged Chrome 6 point Drivers with
T-Handle Rachet with quick release. Set includes 3/8 drive rachet handle and 11 1/2" inch long drivers in Deep mm sizes - 8,9,10,11,12,13,14,17 & 19mm. Includes folding case.
Part #: 35-9054

Impact Screwdriver with bit set in case. A must have tool used to break loose engine screws with slot or phillips heads.
Part #: 35-0095

Impact Driver Bit Set (Short type)

Replacement Driver Bit Set (1.5" Long) - Set contains 2 Phillips & 2 Slotted impact driver Bits.
Part #: 35-0107

Impact Driver Bit set (Long type)

Replacement Driver Bit Set ( 3" Long ) - Set contains 2 Phillips & 2 Slotted impact driver Bits.
Part #: 35-0110

Cable Luber - Pressure type (Sold each)
Water & dirt are blown down cable by lubricant when pressure spray can nozzle is applied. Spray lube sold by most bike shops.
Part #: 35-0108

15mm wide (9/16") Stainless Steel Gasket Scraper Knife.
Part #: 35-8002

20mm wide (.79") Stainless Steel Gasket Scraper Knife.
Part #: 35-8003

30mm wide (1.18") Stainless Steel Gasket Scraper Knife.
Part #: 35-8004

Tire Lever - 16" Long Dunlop Type - For those tough tires needing lots of leverage to remove. You need 2-3 of these to do the job!
Part #: 35-0080

Tire Lever - Fusil Type w Chrome Finish - For those tough tires needing lots
of leverage to remove. You need 2-3 of these to do the job!
Part #: 35-0079

Nylon Rim Savers (Set/2)

Designed to protect rims from damage caused by tire irons when installing tires on rims.
Part #: 35-5101

Spoke Wrench Set - A must have for lacing, truing & tightening spokes.
2Pc. Set - Fits: #8,9,10 & 11 nipple sizes.
Part #: 35-0109

Digital Tire Pressure Guage, LCD Display, 1-100 PSI.
Part #: 35-0089

Wheel Weight Wrench Tool for installing and removing spoke or mag type wheel weights.
Part #: 35-9059

Clutch & Sprocket Holder Tool

Professional adjustable vise grip style clutch basket and sprocket holder tool.
Part #: 35-9052

250 ml Graduated Cylinder

250cc (1/4 Liter) plastic Graduated Cylinder for accurate measuring of fork oil and other fluids.
Part #: 35-2210

500cc (1/2 Liter) plastic Graduated Cylinder for accurate measuring of fork oils and other fluids.
Part #: 35-2211

1,000cc (1 Liter) plastic Graduated Cylinder for accurate measuring of fluids.

1 US Quart = 946cc (946ml.)
Part #: 35-2212

1 Liter Fluid Flask

One Liter Fluid Flask with nozzle and lid. Ideal for oil or other fluids.

1 US Quart = 946cc (946ml.)
Part #: 35-9020

Metal Funnel with 14" detachable metal nozzle.
Part #: 35-8040

Ring Wrench to adjust shock preload.

Fits: Our shock sets and many other aftermarket shocks.
Part #: 35-5033

3/8" Drive Tripod Oil Filter Wrench

Fits: Aftermarket Spin-On Cartridge Oil filters (our #15-1006) for all CB750 (1969-78) models.
Part #: 35-9022

Drive Chain Breaker Tool, breaks 520/530 and 630 pitch chain.
Part #: 35-0083

Chain Press Tool Used to press on sideplates (rivet or clip type) onto rear drive chains.

Most late type High strength drive chains now use a press on sideplate
on the connecting link (including IZUMI 530 HT).
Part #: 35-0081

Drive Chain Riveter Tool - Rivets high strength rear drive chain Rivet links with hollow pin ends as on our IZUMI 530HT Chain (Rivet link #56-0235) and many DID brand chains. This quality tool is sold below cost.
Part #: 35-0006

Drive Chain Rivet Tool Replacement Rivet Pin - Fits: 35-0006 (Above)
Part #: 35-0007

Chain Puller Tool, Pulls new rear drive chain ends together so that the joiner link can be slipped in place. Ideal for new chains that are difficult to get together for the first time.
Part #: 35-0130

Strap Wrench with rubberized strap for improved grip. Ideal for holding fork tubes and other round smooth shapes.

Fits: 29-160mm. (1 1/8" - 6 1/4" diameter items
Part #: 35-9024

T-Handle Adjustable Holder for Pulleys, Flywheels, Hubs and other round smooth objects.
Part #: 35-0116

Tappet Adjusting Tool Set

4 Piece Set- for both 9 and 10mm valve adjuster screw locknuts. Screwdriver tip and 4mm square tip for valve adjuster screws.
Part #: 35-0042

Fork Oil Level Gauge for adjusting the oil level on all forks. Adjustable ring measures oil levels from 0-300mm in 50mm increments. 60ml capacity syringe adjusts fluid levels.
Part #: 35-1084

Brake Bleeder Tool

High Quality Vacuum Brake Bleeder Tool suitable for motorcycle use.
All metal construction, This is the best way to get the job done quickly.

Note: Do not use this tool with Speed bleeders.
Part #: 35-3050

Brake Caliper Piston holding/detaching Tool for brake calipers.
Grabs Brake Caliper Pistons internally so seized pistons can be worked loose from the caliper.
Part #: 35-1086

Right Angled Snap Ring Plier Set - Reaches in deep to remove clips when rebuilding master cylinders.
Part #: 35-0009

Snap Ring Plier Set (4pc) - Removes internal and external snap rings. Includes 2 straight and 2 angled tips.
Part #: 35-0114

Feeler Gauge Set- Metric Feeler Gauge Set for setting valve clearances.
9pc. Set (marked in metric sizes only).
0.04mm. - (.0015")
0.05mm. - (.002")
0.06mm. - (.0025")
0.07mm. - (.0028")
0.08mm. - (.003")
0.10mm. - (.004")
0.15mm. - (.006")
0.20mm. - (.008")
0.30mm. - (.012")
Part #: 35-1766

Feeler Gauge Set - Metric Feeler Gauge Set for setting valve and contact point clearances. 20pc Set (marked in metric sizes only).
0.05mm. - (.002") 0.55mm. - (0.22")
0.10mm. - (.004") 0.60mm. - (0.24")
0.15mm. - (.006") 0.65mm. - (0.26")
0.20mm. - (.008") 0.70mm. - (0.28")
0.25mm. - (.010") 0.75mm. - (0.30")
0.30mm. - (.012") 0.80mm. - (0.32")
0.35mm. - (.014") 0.85mm. - (0.34")
0.40mm. - (.016") 0.90mm. - (0.36")
0.45mm. - (.018") 0.95mm. - (0.38")
0.50mm. - (0.20") 1.00mm. - (0.40")
Part #: 35-1768

Feeler Gauge Set - Metric/Inch Feeler Gauge Set for setting valve and contact point clearances. 32pc Set (marked in metric and inch sizes).
0.03mm. - (.001") 0.04mm. - (.0015") 0.05mm. - (.002") 0.06mm. - (.0025")
0.07mm. - (.0028") 0.08mm. - (.003") 0.09mm. - (.0035") 0.10mm. - (.004")
0.13mm. - (.005") 0.15mm. - (.006") 0.18mm. - (.007") 0.20mm. - (.008")
0.23mm. - (.009") 0.25mm. - (.010") 0.28mm. - (.011") 0.30mm. - (.012")
0.33mm. - (.013") 0.35mm. - (.014") 0.38mm. - (.015") 0.40mm. - (.016")
0.45mm. - (.018") 0.50mm. - (0.20") 0.55mm. - (.022") 0.60mm. - (0.24")
0.63mm. - (.025") 0.65mm. - (0.26") 0.70mm. - (0.28") 0.75mm. - (0.30")
0.80mm. - (0.32") 0.85mm. - (0.34") 0.90mm. - (0.36") 1.00mm. - (0.40")
Part #: 35-1769

Feeler gauge set with 45 degree ends.
Includes Sizes - .008", .010", .012", .013", .014", .015", .016", 018", .019", .020", .025", .026"
Marked in Metric and Inch sizes.
Part #: 35-1767

Circular Spark plug gap tool. Marked in thousandths of an inch and millimeters.
Part #: 35-0136
